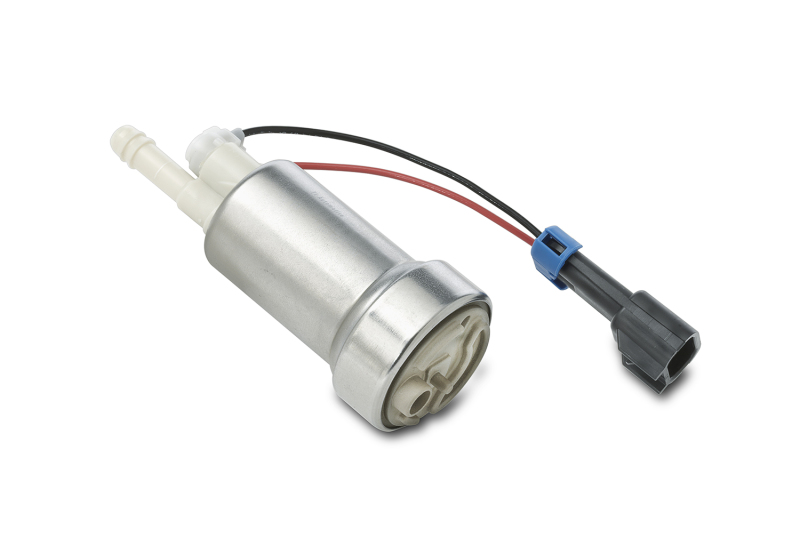

Walbro Fuel Pump
$173.55
-
Universal 490 LPH E85 Compatible
Description
New DCSS 39/50 High-Performance Pump – F90000295:
– Highest flow in-tank brushed fuel pump offering from TI Automotive / Walbro
– No Internal check valve – ideal for racing applications to build oil pressure prior to start-up
– Featuring award winning DCSS technology
– E85 compatible
– High-pressure relief setting – supports supercharger and turbo applications
– Capable of supporting 900+HP at 60PSI naturally aspirated applications
– Complete Pump and kit combination – TCD495
Fuel: GAS & E85
Horsepower: 900+ at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 535LPH at 40psi
Test Voltage: 13.5 Volts
Note: Pump does NOT have a check valve
NOTE: All Power estimates are for 3 Bar of Fuel Pressure, and are HP and KW at the engine.
| PETROL / GASOLINE | E85 | ||
| Naturally Aspirated | 1072HP / 799KW | Naturally Aspirated | 800HP / 596KW |
| Up To 1 Bar Boost | 839HP / 626KW | Up To 1 Bar Boost | 615HP / 459KW |
| 1 to 2 Bar Boost | 775HP / 578KW | 1 to 2 Bar Boost | 548HP / 408KW |
| Fitment Notes | Pump does NOT have a check valve |
|---|---|
| Walbro Fuel Pump | F90000295 |
| Fuel Pump Type | In-Tank |
| Important Remarks | No Internal check valve – ideal for racing applications to build oil pressure prior to start-up |
| Part Number | F90000295 |
| Short Description | Walbro 535LPH – TI Automotive TCD495 Fuel Pump Highest flow in-tank brushed fuel pump from TI AutomotiveWalbro Part Number: F90000295 Hellcat Plus + Install Kit 400-1168 Horsepower: 985HP+ at 60PSI, naturally aspirated applications Horsepower: 900HP+ at 90PSI, naturally aspirated applications Flow Rate: 490LPH @ 40psi (130 gph) Fuel: GAS & E85 Without Internal Check Valve |
Additional information
| Weight | 1.1 lbs |
|---|---|
| Dimensions | 7.2 × 2.3 × 2.2 in |
