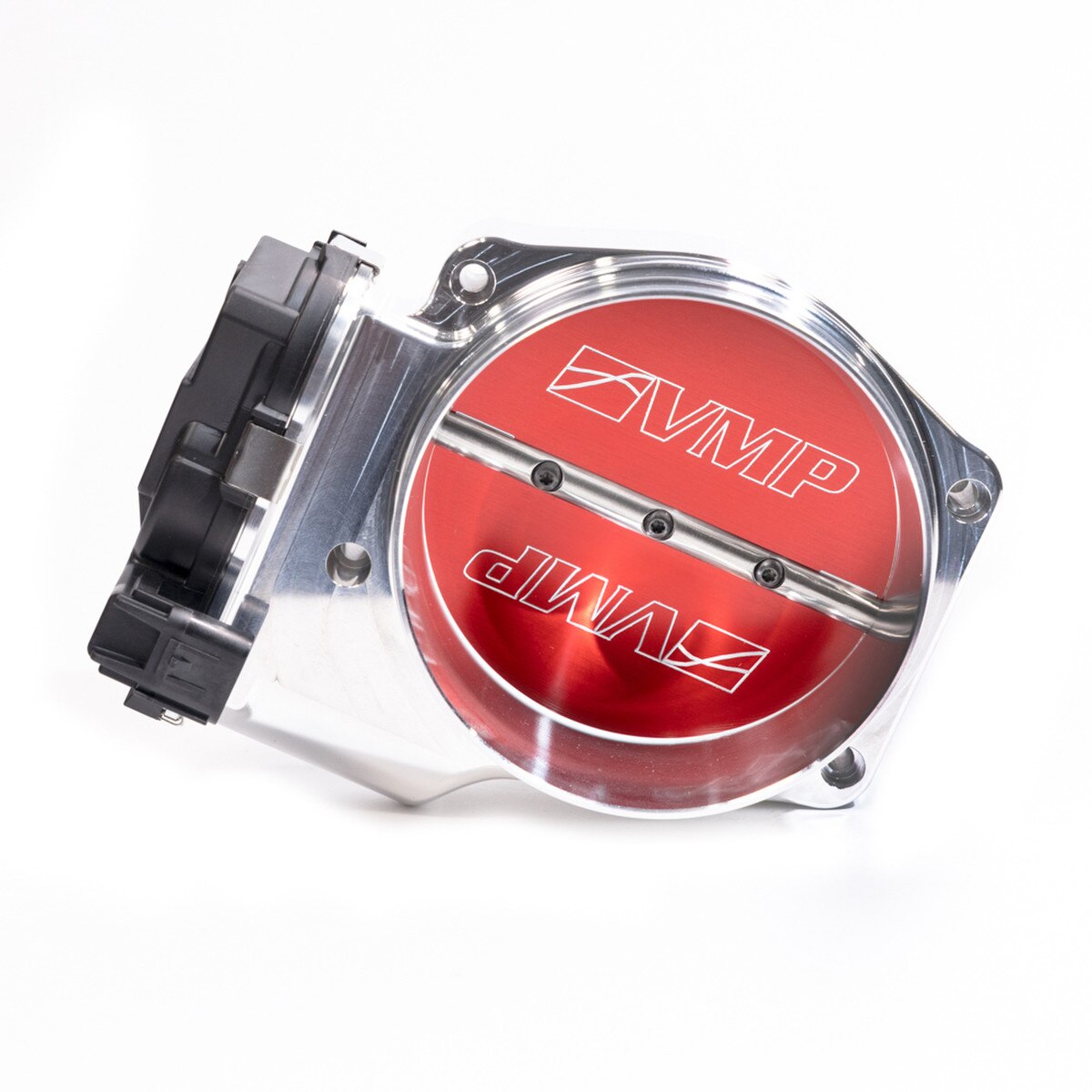

VMP Apex 112mm Throttle Body For Gen2 Analog

VMP Apex 112 mm throttle body for ’15-17 – Gen2 Analog

*Requires adapter harness VMP-INM024 to use with Gen2 Mustang & F-150 PCM*

The ultimate throttle body solution for power and drivability!  This TB features a high torque motor and a progressive opening to make it tunable and flow enough air for 1500+ HP.  Designed for VMP’s new Apex Predator line of superchargers and the new VMP Gen6.

Digital version included with Apex Upgrade Kit VMP-SH52AP2-265

Specifications:

• 112 mm bore
• Analog electronics with high-torque motor compatible with Gen2 PCM
• Offset bore design with progressive opening for improved idle & tuneability
• 126 mm x 70 mm bolt pattern
• O-ring seal
• Accepts 4.75 inch silicone coupler
  • See VMP-INA031 for ’20+ GT500 Apex CAI
  • See VMP-INA050 for ’24+ GT CF CAI
