Garrett Turbo

$5,064.56$7,143.56

-

GTX5533R 94mm Gen II 1000-2500 HP

Description

GTX And GTX Gen II Series Turbochargers Are An Evolution Of The GT Series Product Line. The Original Architecture Of The GT Series Turbos Remains However Many Design And Performance Features Have Been Introduced Over Time. Ceramic Dual Ball Bearings And Forged Fully-Machined Compressor Wheels With GTX And GTX Gen II Aerodynamics Provide A Larger Horsepower Range And Maximize Boost Response.

Key Features

  • Gen II Aerodynamics Feature Increased Horsepower Range
  • 88MM Compressor Inducer | 133MM Compressor Exducer
  • 112MM Turbine Inducer | 102MM Turbine Exducer
  • New Fully-Machined Speed Sensor Port
  • Improved Ported Shroud Design For Surge Resistance
  • Lightweight Billet Backplate
  • V-Band Compressor Outlet Configuration
  • High Efficiency Ceramic Ball Bearing Cartridge
  • SFI Certified

Maximum Allowable Turbocharger Speed84KRPM. The Use Of This Product Above Max Turbocharger Speed Is At The Owner’s Risk, And Can Result In Damage And Premature Failure. To Protect The Turbocharger From Overspeed When Operating, A Speed Sensor Can Be Installed Into The Compressor Housing To Monitor Shaft Speed. Sensors Sold Separately.

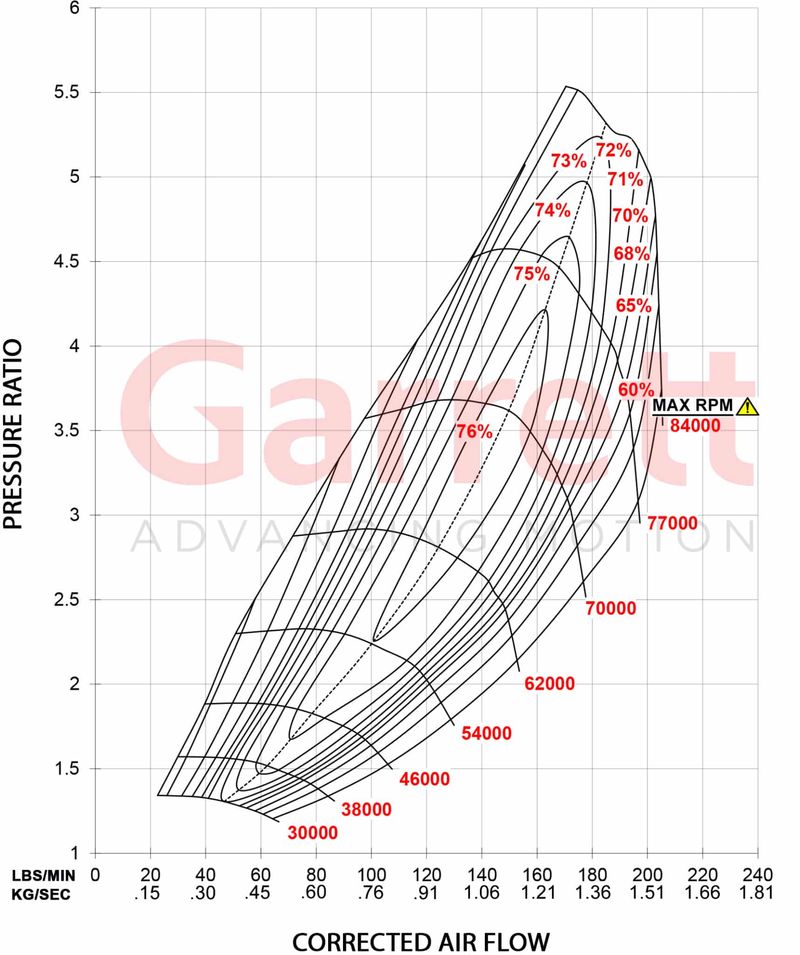

Performance Results Of This Product Are Highly Dependent Upon Your Vehicle’s Modifications And Tuning/Calibration. The Horsepower Numbers Represented Above Are Calculated Based Strictly On Choke Flow Of The Compressor Map (Total Turbo Capability), Which Represents The Potential Flywheel Horsepower.

Engine Characteristics

Min HP
1000
Max HP
2500
Min Displacement (L)
3.0
Max Displacement (L)
12.0
Compressor Wheel Specs
Compressor Exducer (mm)
134
Compressor Wheel Mat
Forged Fully Machined
Compressor A/R
0.88
Turbine Wheel Specs
Turbine Inducer (mm)
112
Turbine Exducer (mm)
102
Turbine Trim
84
Turbine Wheel Mat
Inconel
Turbochargers
Product Line
GTX Gen II
Frame Size
55
Rotation
Standard
Cooling
Oil Cooled
Wastegate
External
Bearing
Ceramic Dual Ball Bearing
GTX5533R-Gen-II-Supercore-Standard-Rotation-94MM-Comp-Ind

Additional information

Weight 20 lbs
Dimensions 16 × 12 × 12 in
